DD250HB160
圖表
指標(biāo)參數(shù)

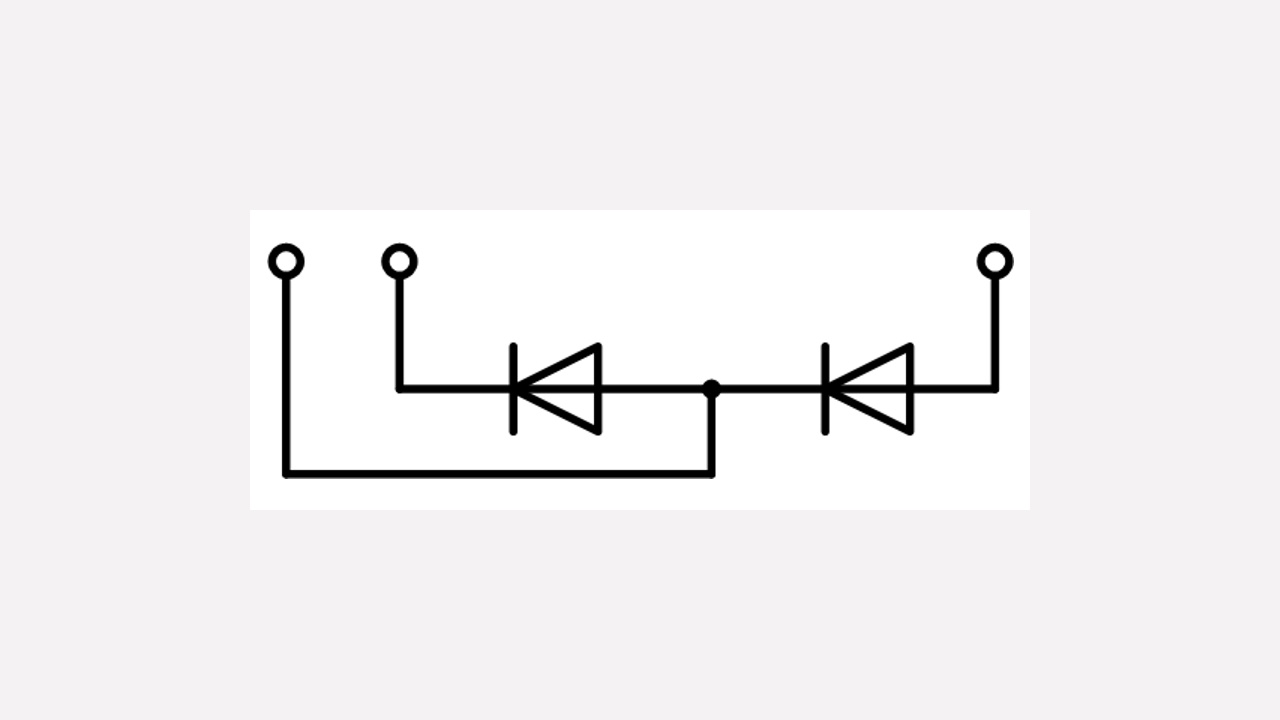

Parametrics DD231N22K Configuration Rectifier Diode Housing Power Block 50 mm IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin) 231/100 IFSM / ITSM [A] (@10ms, Tvj max) 6400.0 RthJC [K/W] (@180° el sin) 0.17 Tvj [°C] max 150.0 VDRM / VRRM [V] 2200.0 VDRM/ VRRM (V) 2200.0 V VT0 [V] (@Tvj max) 0.8 rT [m?] (@Tvj max) 0.84 ∫I2dt [A2s · 103] (@10ms, Tvj max) 205.0
