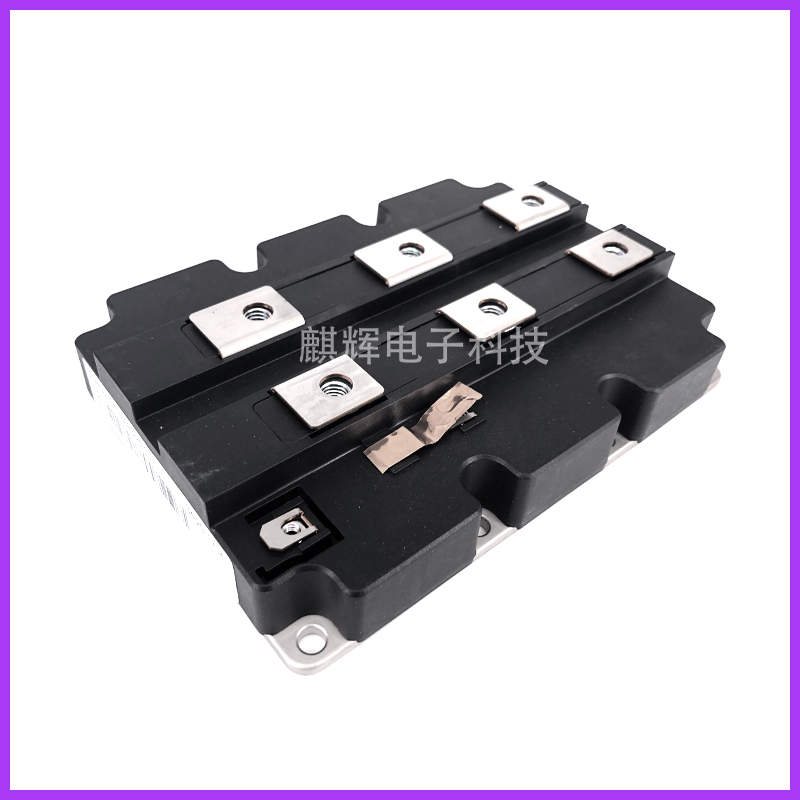

FZ1500R33HE3
圖表
指標(biāo)參數(shù)
Parametrics FZ1500R33HE3 Configuration Single switch Dimensions (width) 140.0 mm Dimensions (length) 190.0 mm Housing IHV B IC(nom) / IF(nom) 1500.0 A IC max 1500.0 A Qualification Industrial ; Traction Technology IGBT3 - E3 VCE(sat) (Tvj=25°C typ) 2.55 V VCES / VRRM 3300.0 V VF (Tvj=25°C typ) 3.1 V Voltage Class 3300.0 V
