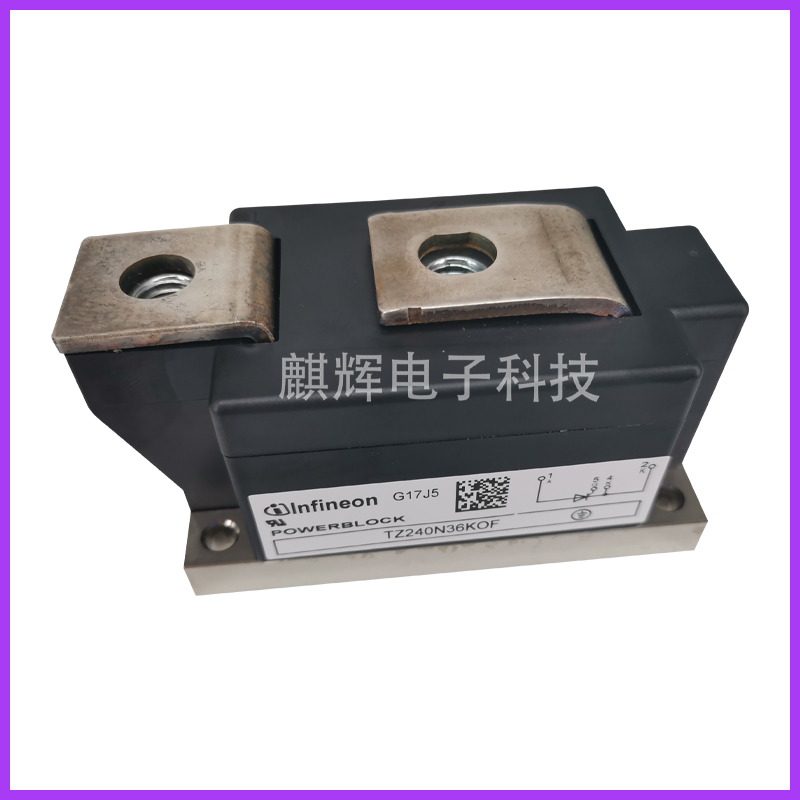

TZ240N36KOF

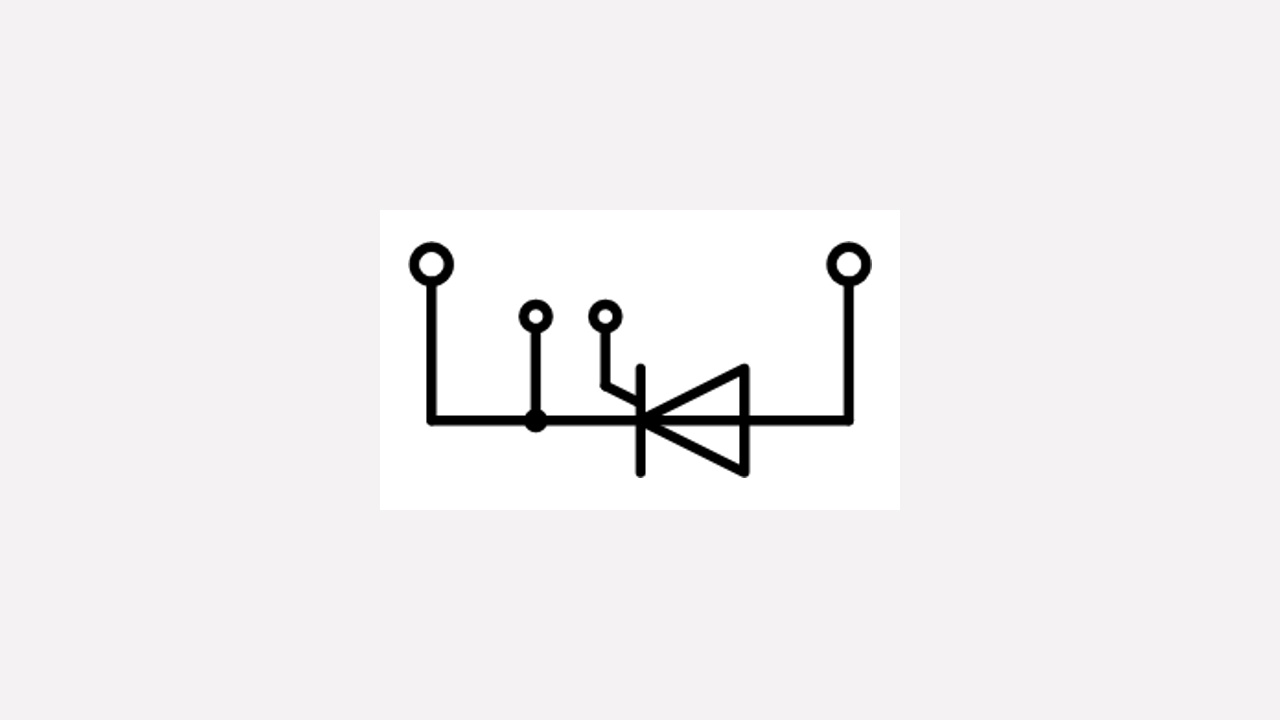

圖表
指標(biāo)參數(shù)
Parametrics TZ240N36KOF (diT/dt)cr [A/μs] (@DIN IEC 747- 6) 100.0 Configuration Single SCR Phase Control Housing Power Block 50 mm IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin) 240/85 IFSM / ITSM [A] (@10ms, Tvj max) 5500.0 RthJC [K/W] (@180° el sin) 0.078 Tvj [°C] max 125.0 VDRM / VRRM [V] 3600.0 VDRM/ VRRM (V) 3600.0 V VT0 [V] (@Tvj max) max 1.17 rT [m?] (@Tvj max) 1.7 ∫I2dt [A2s · 103] (@10ms, Tvj max) 151.0
