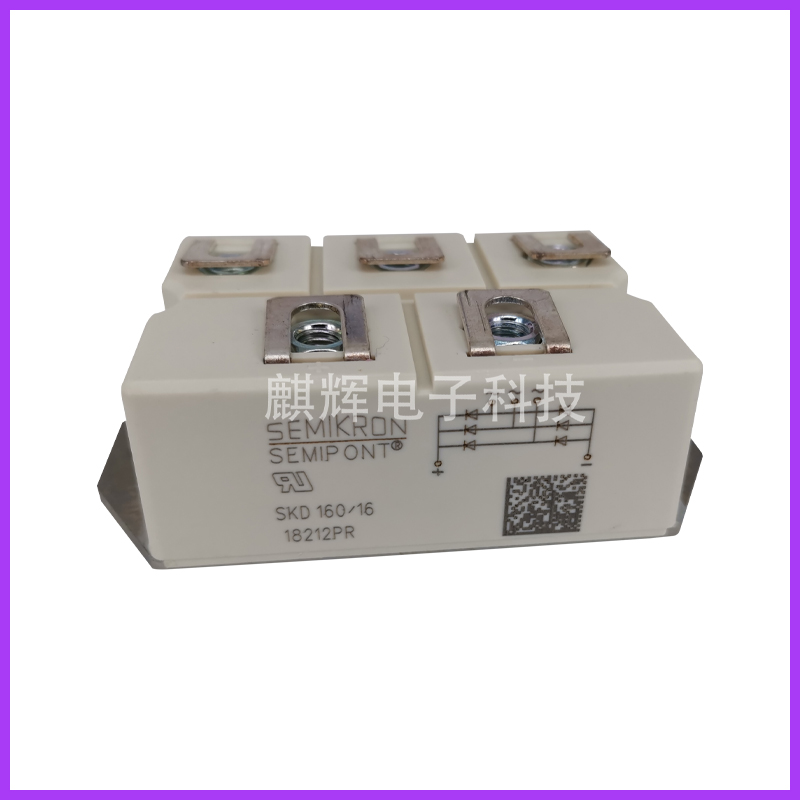

SKD160-16
SKD 160
Bridge Rectifier Modules
SEMIPONT 4 (94x54x32)
| Part Number | 07913230; 07913240; 07913250; 07913260; 07913270 |
| Product Status | In production |
| Housing | SEMIPONT 4 |
| (LLxBBxHH) | 94x54x32 |
| Switches | 6 |
| VRRM / VDRM in V | 800-1800 |
| ID in A | 205 |
| IFSM / ITSM in A | 1500 |
| 圖片 | 品牌 | 型號 | 封裝結(jié)構(gòu) | 電壓 | 電流 | 參考價(jià)格 |
 | 西門康 SKD整流橋 | SKD25/12 | Power Bridge Rectifiers | 1200V | 20A | ￥57.00 |
| SKD25/16 | Power Bridge Rectifiers | 1600V | 20A | ￥73.00 | ||
 | 西門康 SKD整流橋 | SKD30/02A1 | Power Bridge Rectifiers | 200V | 30A | ￥152.00 |
| SKD30/04A1 | Power Bridge Rectifiers | 400V | 30A | ￥161.00 | ||
| SKD30/08A1 | Power Bridge Rectifiers | 800V | 30A | ￥188.00 | ||
| SKD30/12A1 | Power Bridge Rectifiers | 1200V | 30A | ￥206.00 | ||
| SKD30/14A1 | Power Bridge Rectifiers | 1400V | 30A | ￥229.00 | ||
| SKD30/16A1 | Power Bridge Rectifiers | 1600V | 30A | ￥239.00 | ||
 | 西門康 SKD整流橋 | SKD31/12 | SEMIPONT? 1 | 1200V | 31A | ￥95.00 |
| SKD31/16 | SEMIPONT? 1 | 1600V | 31A | ￥120.00 | ||
| SKD33/12 | SEMIPONT? 1 | 1200V | 33A | ￥119.00 | ||
| SKD33/16 | SEMIPONT? 1 | 1600V | 33A | ￥127.00 | ||
 | 西門康 SKD整流橋 | SKD60/12 | SEMIPONT? 2 | 1200V | 60A | ￥376.00 |
| SKD60/16 | SEMIPONT? 2 | 1600V | 60A | ￥400.00 | ||
| SKD100/12 | SEMIPONT? 2 | 1200V | 100A | ￥391.00 | ||
| SKD100/16 | SEMIPONT? 2 | 1600V | 100A | ￥417.00 | ||
 | 西門康 SKD整流橋 | SKD62/04 | SEMIPONT? 3 | 400V | 60A | ￥249.00 |
| SKD62/08 | SEMIPONT? 3 | 800V | 60A | ￥264.00 | ||
| SKD62/12 | SEMIPONT? 3 | 1200V | 60A | ￥264.00 | ||
| SKD62/14 | SEMIPONT? 3 | 1400V | 60A | ￥281.00 | ||
| SKD62/16 | SEMIPONT? 3 | 1600V | 60A | ￥281.00 | ||
| SKD62/18 | SEMIPONT? 3 | 1800V | 60A | ￥281.00 | ||
| SKD82/04 | SEMIPONT? 3 | 400V | 80A | ￥277.00 | ||
| SKD82/08 | SEMIPONT? 3 | 800V | 80A | ￥293.00 | ||
| SKD82/12 | SEMIPONT? 3 | 1200V | 80A | ￥293.00 | ||
| SKD82/14 | SEMIPONT? 3 | 1400V | 80A | ￥313.00 | ||
| SKD82/16 | SEMIPONT? 3 | 1600V | 80A | ￥313.00 | ||
| SKD82/18 | SEMIPONT? 3 | 1800V | 80A | ￥313.00 | ||
 | 西門康 SKD整流橋 | SKD110/08 | SEMIPONT? 4 | 800V | 110A | ￥496.00 |
| SKD110/12 | SEMIPONT? 4 | 1200V | 110A | ￥528.00 | ||
| SKD110/14 | SEMIPONT? 4 | 1200V | 110A | ￥528.00 | ||
| SKD110/16 | SEMIPONT? 4 | 1600V | 110A | ￥565.00 | ||
| SKD110/18 | SEMIPONT? 4 | 1800V | 110A | ￥565.00 | ||
| SKD160/08 | SEMIPONT? 4 | 800V | 160A | ￥496.00 | ||
| SKD160/12 | SEMIPONT? 4 | 1200V | 160A | ￥528.00 | ||
| SKD160/14 | SEMIPONT? 4 | 1600V | 160A | ￥565.00 | ||
| SKD160/16 | SEMIPONT? 4 | 1600V | 160A | ￥565.00 |
